2噸/天 食用顆粒制冰機
258
產品摘要
- 南北儀器是2噸/天 食用顆粒制冰機產品的供應商,提供2噸/天 食用顆粒制冰機全套產品的價格,參數,價錢,報價,品牌等資料,歡迎來電咨詢優惠價錢,南北儀器品質提供
NB2T-R2W食用小顆粒制冰機技術參數表
|
序號NO. |
參數名Parameters |
數值Technical data |
|
|
1 |
型號Model |
NB2T-R2W |
|
|
2 |
蒸發溫度Evaporating temp. |
-10℃ |
|
|
3 |
冷凝溫度Condenser temp |
+40℃ |
|
|
4 |
控制系統Control system |
PLC micro-computer control |
|
|
5 |
電源形式Voltage |
220V/3Phase/60Hz |
|
|
6 |
方冰密度cube ice weight density |
500~550kg/m3 |
|
|
7 |
耗電量Power consumption |
80KW~85KW/ton |
|
|
8 |
尺寸Measurement |
方冰機 Cube ice machine |
Machine:1750mm x 1510mm x 2040mm |
|
方冰 Cube ice |
22mm x 22mm x 22mm 冰塊尺寸 or 29mm x 29mm x 22mm |
||
|
9 |
運行聲噪Noise |
55dB |
|
|
10 |
制冷劑Refrigerant |
R22 |
|
|
11 |
蒸發溫度Evaporating temp. |
-15℃ |
|
|
12 |
冷凝溫度Condenser temp |
+40℃ |
|
|
13 |
額定進水溫度Input water temp. |
28℃ |
|
|
14 |
額定環境溫度Ambient temp. |
40℃ |
|
|
15 |
壓縮機 Compressor |
類別Model |
富士豪半封閉壓 |
|
Brand name |
富士豪 |
||
|
數量Amount |
1 |
||
|
型號Type |
Q7-33.1 |
||
|
制冷量Power |
16.78KW |
||
|
16 |
減速電機 |
0.75KW |
|
|
17 |
冷卻風扇總功率 Total Power of cooling fan |
0.55KW |
|
|
18 |
冷卻水泵 |
2.2KW |
|
|
19 |
冷凍水循環泵功率 Power of circulating water pump |
0.75KW |
|
|
20 |
蒸發器Evaporator |
型號Type |
cube type |
|
數量Quantity |
8 pieces |
||

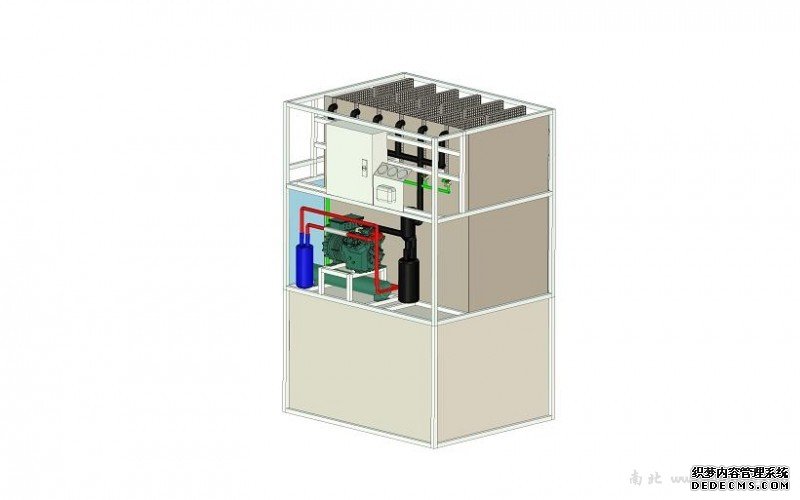

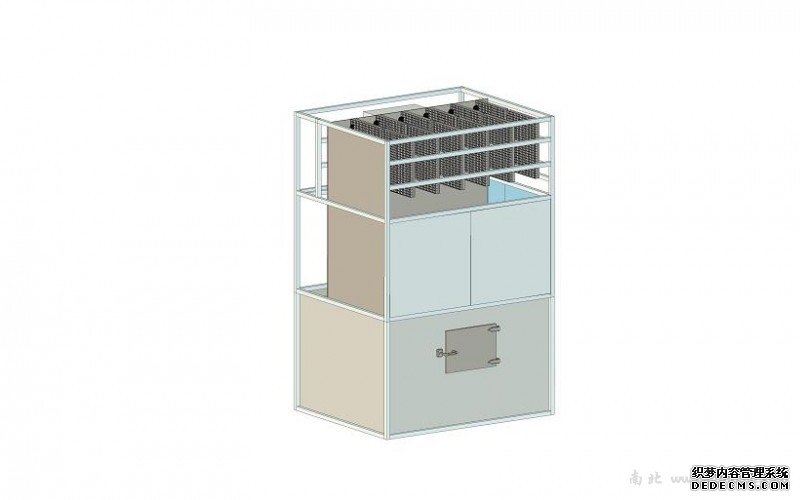

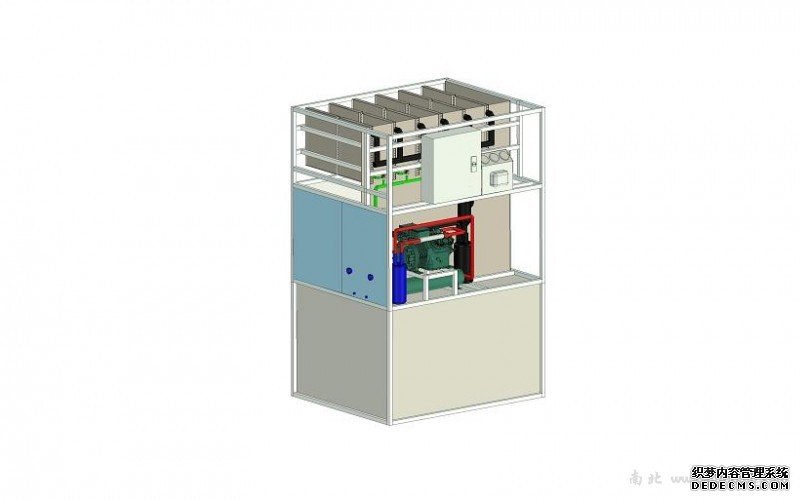

食用顆粒制冰機3D效果圖
